PIONEERING GLOBAL EXPANSION SINCE 1970, CHOYAL was THE FIRST TO EXPORT EMERY STONES AND FLOUR MILLS TO INTERNATIONAL MARKETS.

OVER THE YEARS, WE HAVE BUILT A STRONG PRESENCE ACROSS 25+ COUNTRIES WORLDWIDE. OUR TEAM IS ALWAYS AVAILABLE TO ASSIST you WITH inquiries, your SPECIFIC REQUIREMENTS or support you may NEED.

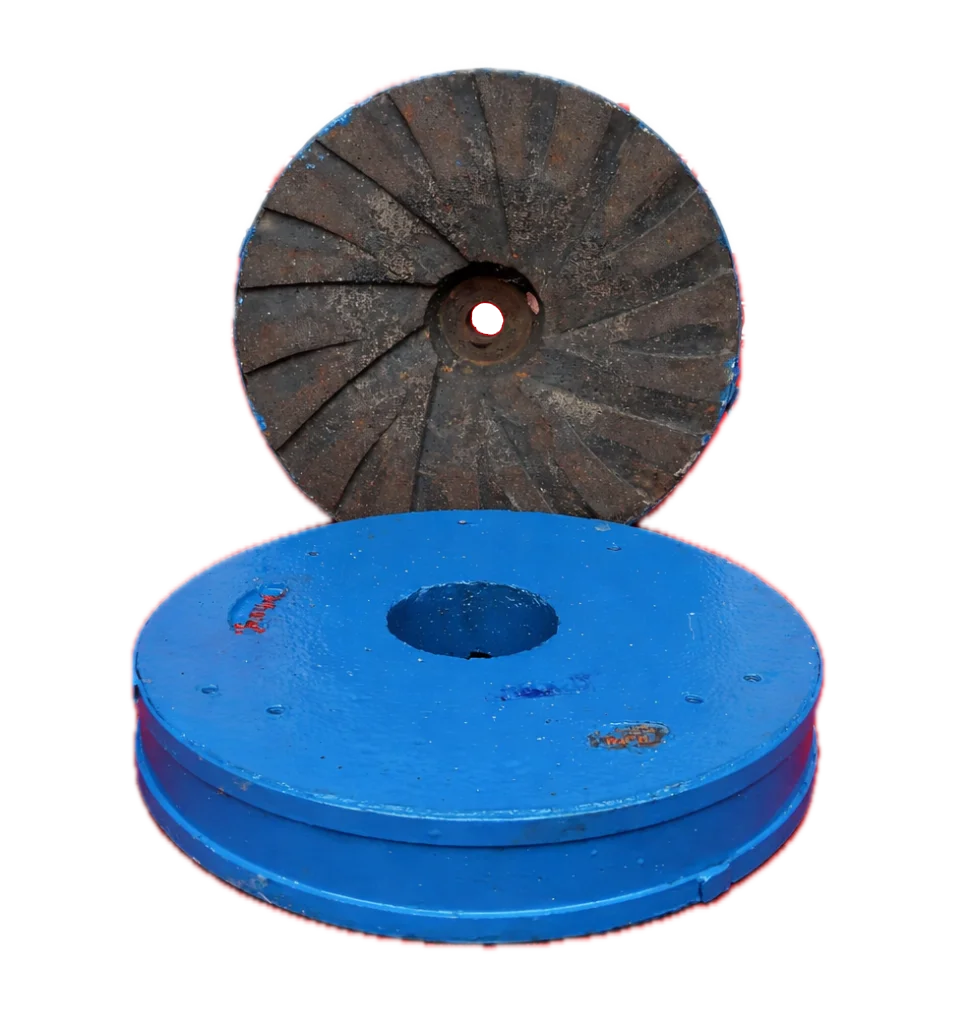

Daniya Type

Choyal Horizontal Emery Stones

Size	Thickness (mm)	Bore (mm)	Weight (Kg)
450 mm/18"	225	45	100
500 mm/20"	225	45	120
600 mm/24"	250	45	185
750 mm/30"	250	45	305
900 mm/36"	150	50	600

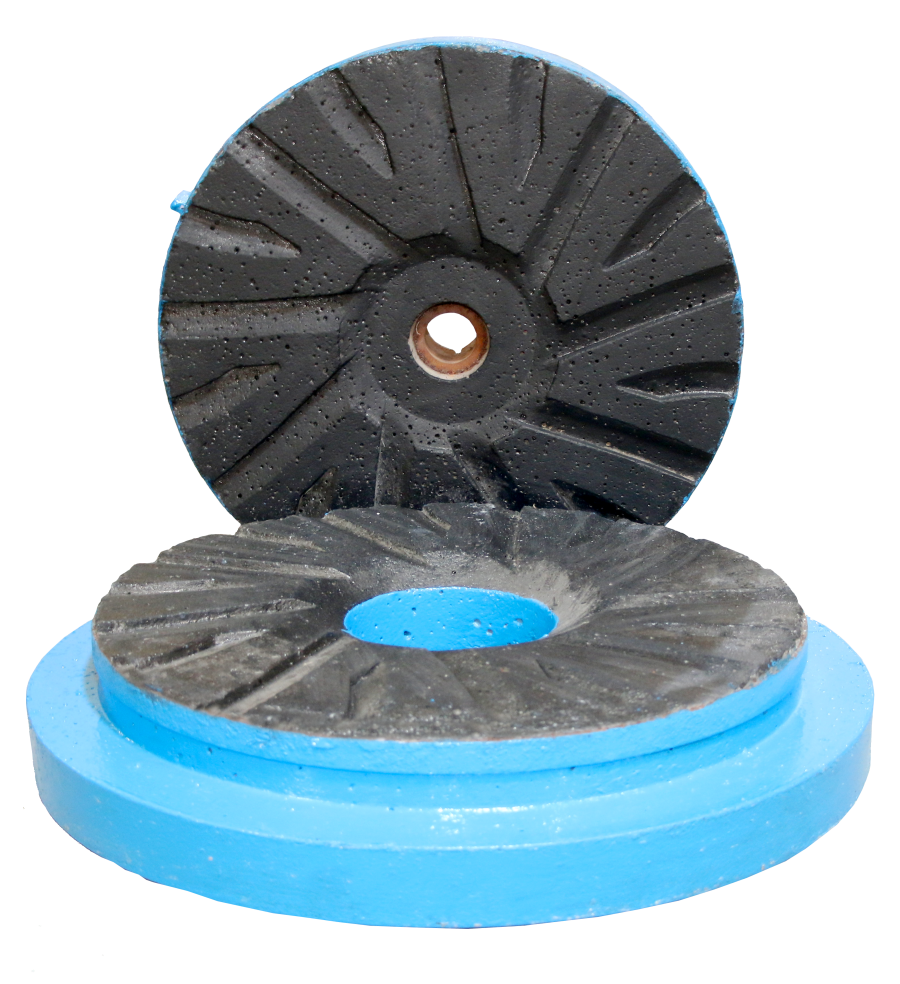

Danish Type

Choyal Vertical Emery Stones

Size	Thickness (mm)	Bore (mm)	Weight (Kg)
300 mm/12"	150	30/35	30
350 mm/14"	150	30/35/40	40
400 mm/16"	150	40	60
450 mm/18"	150	40	85
500 mm/20"	225	45	102
600 mm/24"	225	50	150
900 mm/36"	240	112	450

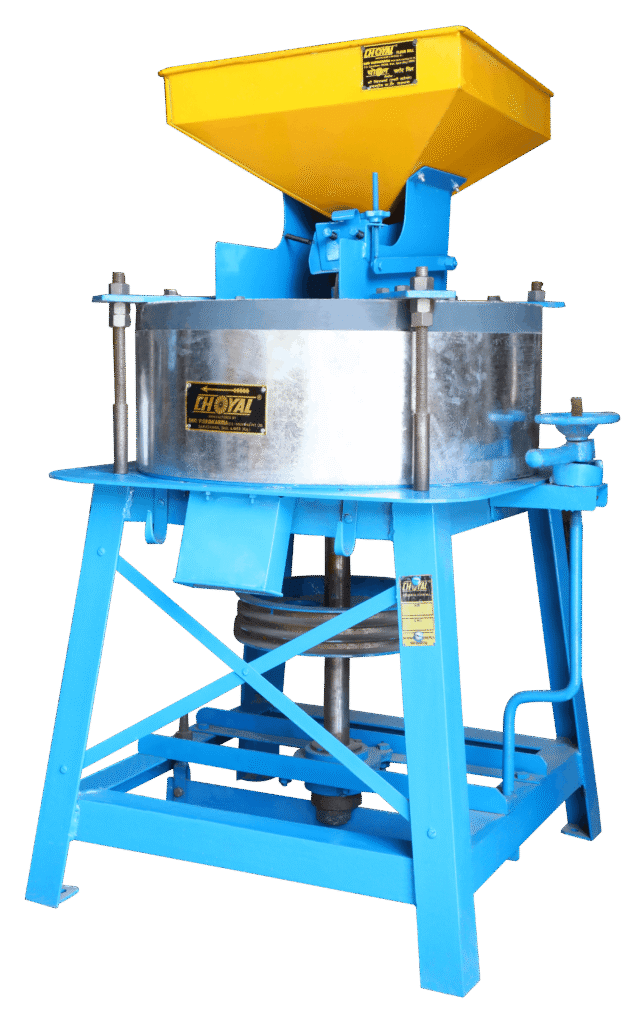

Horizontal Type

Choyal Flour Mills

Size	Product Type	Output (kg/hr)*	Motor (HP)
250 mm/10"	Table Top	5-7	1
350 mm/14"	Standard	15-20	2
400 mm/16"	Standard	50-60	3/ 5
450 mm/18"	Standard	60-75	5
500 mm/20"	Standard	100-125	5/ 7.5
600 mm/24"	Standard	175-200	7.5/ 10
750 mm/30"	Standard	275-300	15/ 20

*Depends on mesh of the flour, groove conditions.

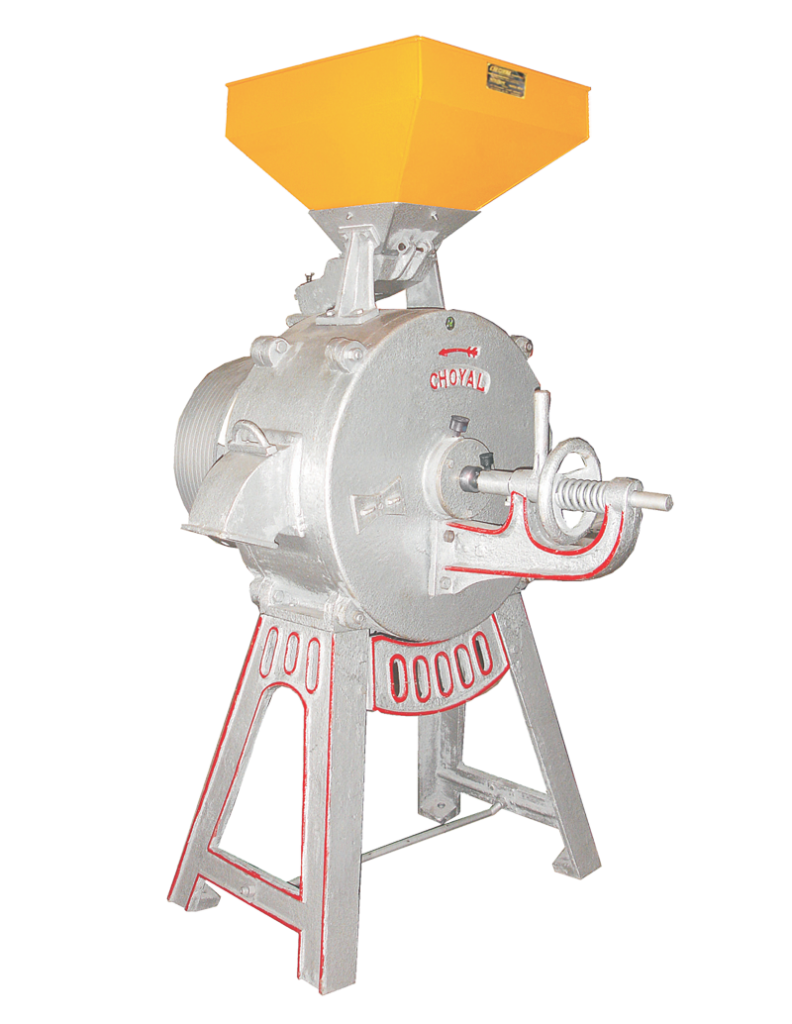

Vertical Type

Choyal Flour Mills

Size	Product Type	Output (kg/hr)*	Motor (HP)
300 mm/12"	Standard	20-25	3
350 mm/14"	Standard	25-35	3/5
400 mm/16"	Standard	75-100	5/7.5
450 mm/18"	Standard	100-125	7.5/10
500 mm/20"	Standard	150-175	10
600 mm/24"	Standard	200-250	15

*Depends on mesh of the flour, groove conditions.
